{osmdata}でエトセトラ(2/3) 極座標グラフの作成
{osmdata}
で取得した道路ネットワークで遊ぶ第2回。今回は道路の角度を求め、極座標グラフを描いてみる。
道路データの細分化
前回取得した道路ネットワークデータは1行に複数の区間が含まれているものがあり、そのままでは角度を計算できない。たとえば若洲には一周しているようなレコードがある。
# とある若洲の道路(結果は1行) ways %>% dplyr::filter(osm_id == 175401748) Simple feature collection with 1 feature and 9 fields geometry type: LINESTRING dimension: XY bbox: xmin: 139.8333 ymin: 35.61354 xmax: 139.8392 ymax: 35.62948 geographic CRS: WGS 84 # A tibble: 1 x 10 osm_id name highway waterway aerialway barrier man_made z_order other_tags * <chr> <chr> <chr> <chr> <chr> <chr> <chr> <int> <chr> 1 17540… NA service NA NA NA NA 0 "\"golf\"… # … with 1 more variable: geometry <LINESTRING [°]>
# 地図上で見ると複数のLINESTRINGの集合に見える ways %>% dplyr::filter(osm_id == 175401748) %>% leaflet::leaflet(options = leaflet::leafletOptions(zoomControl = FALSE)) %>% leaflet::addTiles() %>% leaflet::addPolylines()
そのためLINESTRING
を構成する座標から複数の区間に分割する。
# LINESTRINGを分割 ways.segment <- ways %>% # LINESTRINGの区間をリストに格納 dplyr::mutate(coords = purrr::map(geometry, function(x) { x %>% # 座標を取得 sf::st_coordinates() %>% dplyr::as_tibble() %>% # LINESTRINGの起点 dplyr::select(X, Y) %>% dplyr::rename(lng1 = X, lat1 = Y) %>% # LINESTRINGの終点 dplyr::mutate(lng2 = dplyr::lead(lng1), lat2 = dplyr::lead(lat1)) %>% # 終点がない行を除く dplyr::filter(!is.na(lng2)) })) %>% # ジオメトリ情報を削除 sf::st_set_geometry(NULL) %>% # リストを展開 tidyr::unnest(cols = coords) %>% # 区間のLINESTRINGを作成 dplyr::mutate(geometry = purrr::pmap( list(lng1, lat1, lng2, lat2), function(lng1, lat1, lng2, lat2) { c(lng1, lat1, lng2, lat2) %>% matrix(., ncol = 2, byrow = TRUE) %>% sf::st_linestring() }) ) %>% dplyr::mutate(geometry = sf::st_as_sfc(geometry, crs = 4326)) %>% sf::st_sf()
角度・距離の計算
道路を区間毎に分割できたので角度を求める。Pythonのosmnx
モジュールのget_bearing()
を参考*1に角度を求める関数を定義する。
get_bearing <- function(lng1, lat1, lng2, lat2) { rad2deg <- function(rad) {(rad * 180) / (pi)} deg2rad <- function(deg) {(deg * pi) / (180)} # get latitudes and the difference in longitude, as radians lat1 <- deg2rad(lat1) lat2 <- deg2rad(lat2) diff_lng <- deg2rad(lng2 - lng1) # calculate initial bearing from -180 degrees to +180 degree x <- sin(diff_lng) * cos(lat2) y <- cos(lat1) * sin(lat2) - (sin(lat1) * cos(lat2) * cos(diff_lng)) initial_bearing <- atan2(x, y) %>% rad2deg() # normalize initial bearing to 0-360 degrees to get compass bearing bearing <- (initial_bearing + 360) %% 360 return(bearing) }
区間に分割した道路ネットワークに適用し、角度および距離の列を追加する。
ways.bearing <- ways.segment %>% # 角度を列に追加 dplyr::mutate(bearing = purrr::pmap_dbl( list(lng1, lat1, lng2, lat2), get_bearing )) %>% # 平面直角座標系に変換 sf::st_transform(6677) %>% # 距離を列に追加 dplyr::mutate(dist = purrr::map_dbl(geometry, sf::st_length)) %>% sf::st_transform(4326)
極座標グラフの作成
各道路の角度が求まったので極座標グラフを描いてみる。
ways.bearing %>% # ジオメトリを削除 sf::st_set_geometry(NULL) %>% # 15度ごとに角度を丸める dplyr::mutate(bearing = bearing %/% 15 * 15) %>% # 丸めた角度毎に距離を合計 dplyr::group_by(bearing) %>% dplyr::summarise(dist = sum(dist)) %>% dplyr::ungroup() %>% # 極座標グラフの描画 ggplot2::ggplot(ggplot2::aes(x = bearing, y = dist)) + ggplot2::geom_bar(stat="identity", fill = RColorBrewer::brewer.pal(3, "Dark2")[1]) + ggplot2::coord_polar(start = pi/180 * (-7.5)) + ggplot2::scale_x_continuous(breaks = seq(0, 360, 45)) + ggplot2::ggtitle(stringr::str_c(dplyr::coalesce(city$N03_003, ""), city$N03_004)) + ggthemes::theme_gdocs(base_family = "HiraKakuPro-W3") + ggplot2::scale_fill_brewer(palette = "Set1") + ggplot2::theme(axis.title.x = ggplot2::element_blank(), axis.title.y = ggplot2::element_blank(), axis.text.y = ggplot2::element_blank())

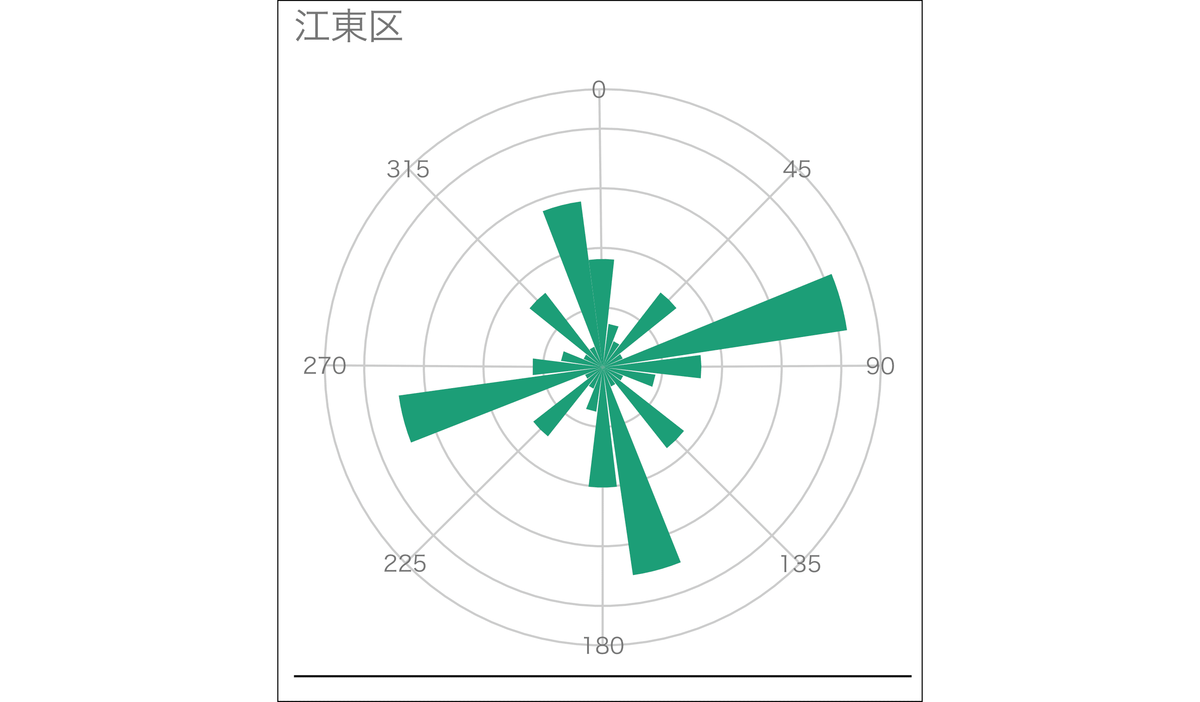

江東区は格子状になっている道路が多そう!
横浜市中央区だと以下のとおり。
横浜市中央区の道路は全方位となっており、都市毎に異なるのが興味深い。

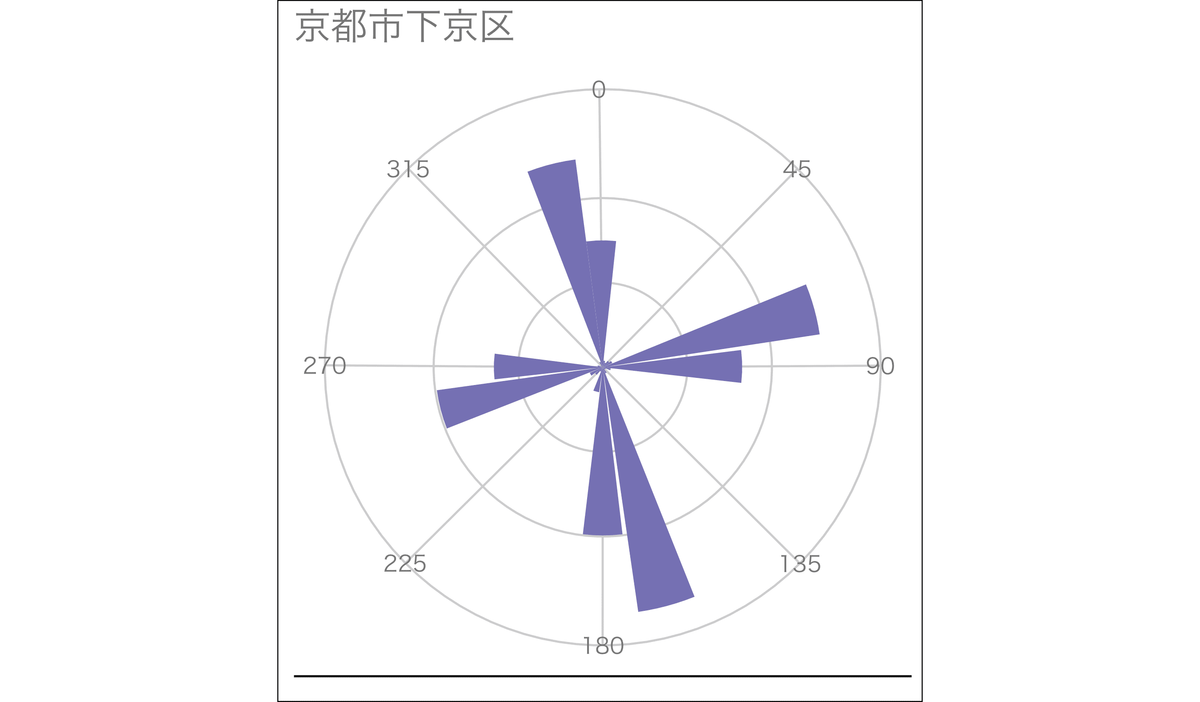

京都市下京区は碁盤の目状だけあって東西南北がはっきり分かる。
次は最後に道路の方角毎に色を塗り分けて地図上に可視化してみる。
